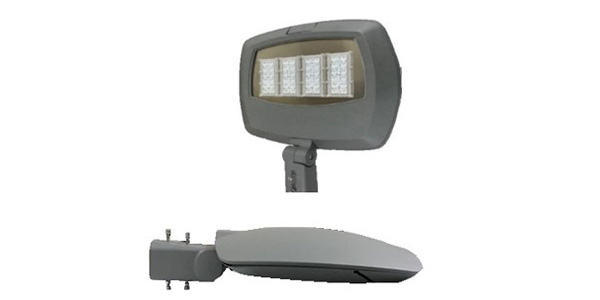

STR Future Proof Street & Area Light

Always On The Leading Edge

The PLG STR Series allows for the simple, easy upgrade of the LED light engine without changing the form factor or aesthetics of the fixture. Essentially, fixtures are serviced / upgraded without replacing the entire fixture. This yields the best economics for an owner post-cashflow projections, or after the payback period is met.

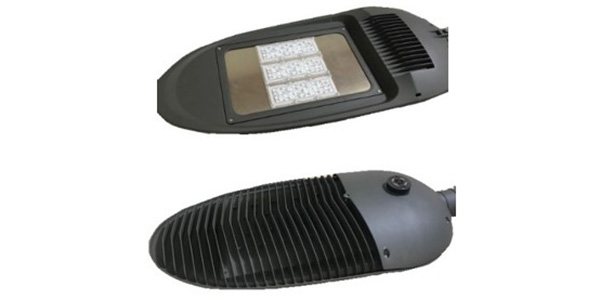

Easily Replaceable Light Engine

The light engine of the STR series streetlight is contained in a single board that is replaced with approximately 4 screws (depending on model) and a quick connect electrical connection. This allows for the MOST economical upgrade of the LED light engine after the effect life of the LED has passed (100,000 hours)
Never Become Obsolete

LED Technology is improving at a rate faster then specifiers can keep up. By the time a LED fixture is thoroughly vetted and incorporated into standards and specifications, it is already dated technology and soon to become obsolete. With the PLG STR Series luminaire, the same specified fixture can last through several generations of LED advancement.

Please contact our sales team directly for information and ordering of custom product configurations.

Description

Performance

  • 100,000+ Hour lamp life per the Energy Star TM-21 Calculator.
  • -30° C to +50° C Ambient Temperature Rating
  • Standard Year Warranty
  • Optional 10 Year Warranty
  • Luminaire Efficacy up to 132 Lumens / Watt

Optics

  • White light color available from 2.7K to 5K. 70 and 80 CRI packages available
  • Standard IESNA Distributions available, as well as custom modified distributions.
  • IP66 Rated lenses, made from UV resistant and ultra clear PMMA
  • BUG Rating of 1-0-1 (Type II)
  • Full Cutoff
  • Standard 0-10V dimming capabilities
  • Standard Auxiliary 12V DC Power Supply

Wireless and Controls

  • Compatible with wireless photocell nodes
  • Standard programmable driver, with lifetime depreciation correction and time of day dimming
  • Optional DALI smart driver for integral wireless capabilities

Electrical

  • Standard accepts range of line voltages between 120V to 277V AC
  • Optional High Voltage (277V to 480V) Input
  • THD < 20%
  • PF > .9
  • Standard Surge Protection of 6kV
  • Optional Surge Protection of 20kV/10kA
  • Optional 7-Pin Photocell Receptacle

Mechanical

  • Light Engine Plate made from rolled Aluminum 5052 Alloy for superior corrosion resistance and heat sinking compared to cast aluminum
  • Replaceable and serviceable module construction
  • Quick connect terminals for line side connections
  • Standard 2” slip fitter mounting, with leveling adjustment

Additional information

STR Fixture Housing Type

A, B, C

Modules

1, 2, 3, 4, 5, 6

Lens Distribution

Type II, Type III, Type IV, Type V Spot, Type Vn Area

CCT

2700K, 3000K, 4000K, 5000K

Wattage

30W, 60W, 90W, 110W, 130W, 150W, 200W, 225W

STR Drive Current

1000, 700

STR Options

10 Year Warranty, Custom Finish, DALI Driver, Dark Bronze Finish, HV (High Voltage), SH (Backlight Shield), SP (Surge Protector), White Finish

STR Future Proof Street & Area Light Spec Sheet (PDF)

Download

STR Fixture Housing C Installation Guide (PDF)

Download

STR Series 5 Year Warranty (PDF)

Download

STR Series 10 Year Warranty (PDF)

Download

STR Series IES File Notes (PDF)

Download

Type II Photometric Data File (IES)

Download

Type III Photometric Data File (IES)

Download

Type IV Photometric Data File (IES)

Download

Type Vn Photometric Data File (IES)

Download
