SBX Luminaire Kit

SBX Luminaire Kit

The Universal HID Retrofit System

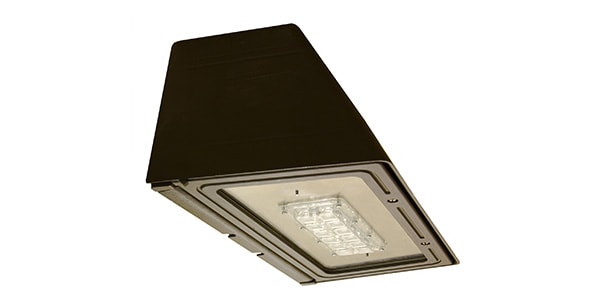

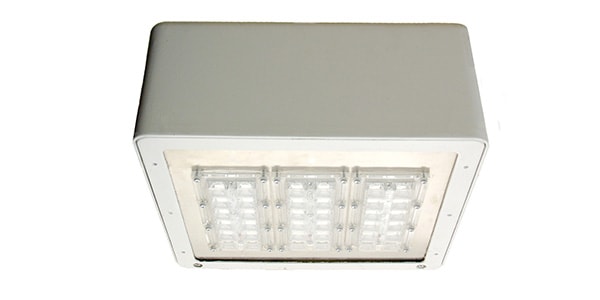

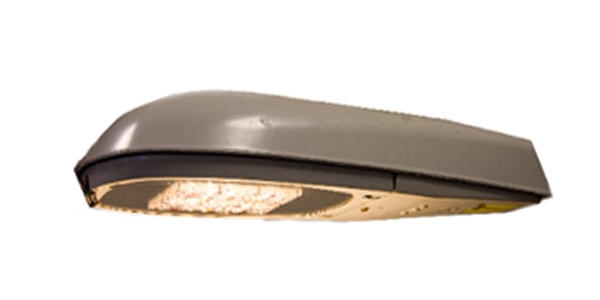

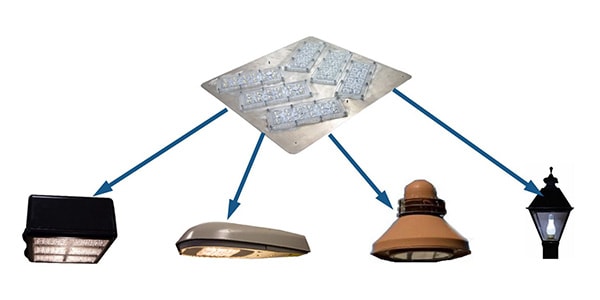

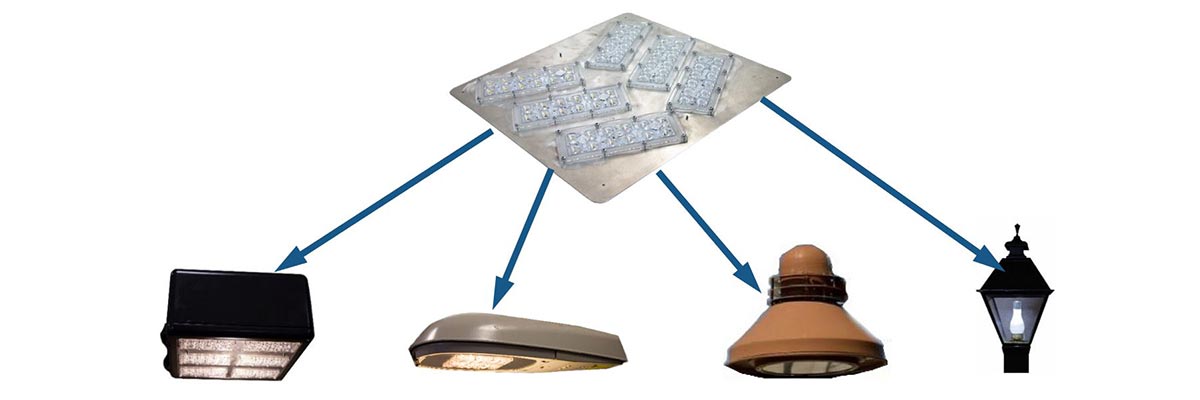

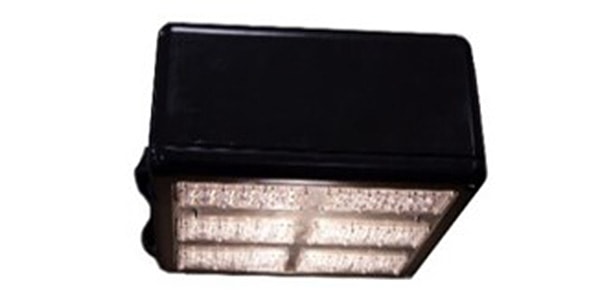

This system is the most cost effective way to enjoy the benefits of LED lighting, in ANY HID light fixture. This luminaire system operates in any existing light fixture, such as parking lot lighting, streetlights, walkway, decorative or wall pack light fixtures, with the installation in 15 minutes or less.

Please contact our sales team directly for information and ordering of custom product configurations.

Description

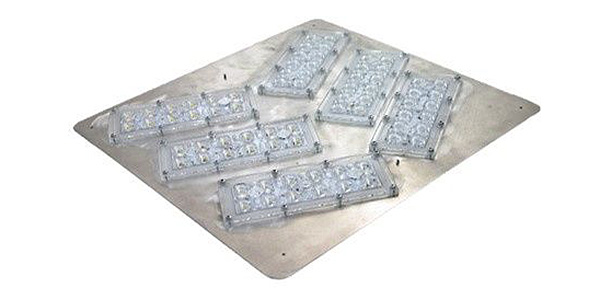

SBX Retrofit Luminaire

Optics

  • Can replace traditional HID fixtures up to 1500 Watts
  • White light color available from 2.7K to 5K.
  • 70 and 80 CRI packages available
  • Standard IESNA Distributions available, as well as custom modified distributions.
  • IP66 Rated lenses, made from UV resistant and ultra clear PMMA
  • BUG Rating of 1-0-1 (Type II)
  • Full Cutoff
  • All come standard with 0-10V dimming capabilities.

Performance

  • 100,000+ Hour lamp life per the Energy Star TM-21 Calculator.
  • -30° C to +50° C Ambient Temperature Rating
  • 5 Year Standard Warranty. Extended warranty options available.

Electrical

  • Accepts range of line voltages between 120V to 277V AC
  • Option for High Voltage Input
  • THD < 20% • PF > .9

Mechanical

  • Made from rolled Aluminum 5052 Alloy for superior corrosion resistance and heat sinking compared to cast aluminum.
  • Replaceable and serviceable module construction.
  • Quick connect terminals for line side connections.
  • Precision machining for exact fit in existing fixture.

Additional information

Modules

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12

Lens Distribution

Type II, Type III, Type IV, Type V Spot, Type Vn Area

CCT

2700K, 3000K, 4000K, 5000K

Wattage

30W, 60W, 90W, 110W, 130W, 150W, 200W, 225W, 240W, 260W, 280W, 300W

SBX Options

CR80 (High CRI), HV (High Voltage – 480V), M30 (Modified Optics), SH (Backlight Shield), SP (Surge Protector)
