LED Panel Light 2×2

$29.23$36.15

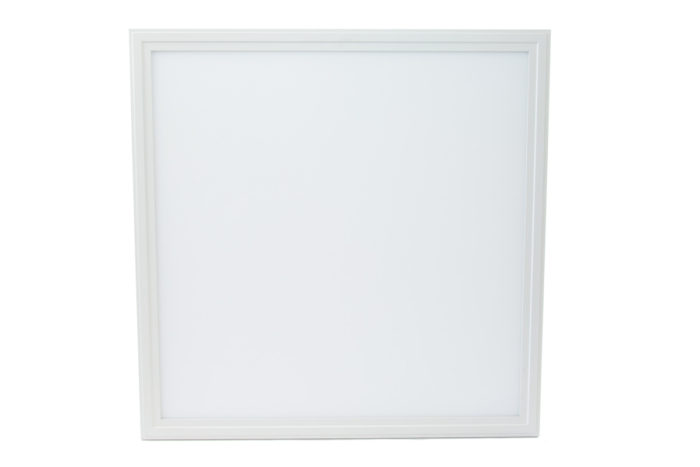

2X2 LED Panel Light, Seamless, low profile design for ambient lighting Enjoy the sleek appearance of sky lighting with the PLG side lit LED panel light. The high performance of the optical system allows for low power densities for typical applications. Compatible with traditional drop grid ceilings, with accessory options for flush mount or suspension mount.

Please contact our sales team directly for information and ordering of custom product configurations.

$
SKU: N/A Category:

Description

Seamless, low profile design for ambient lighting Enjoy the sleek appearance of sky lighting with the PLG side lit LED panel light. The high performance of the optical system allows for low power densities for typical applications. Compatible with traditional drop grid ceilings, with accessory options for flush mount or suspension mount.

  • Can replace traditional Troffer style fixtures.
  • White light color available from 2.7K to 5K
  • > 80 CRI
  • IES files are available
  • Available with 0-10V dimming compatible with building controls like occupancy sensors, timers, dimmers, and daylight harvesters.

Performance

  • 50,000+ Hour lamp life
  • LM-80, LM-79, TM-21 information available
  • -55° C to +40° C Ambient Temperature Rating
  • 5 Year Standard Warranty. Extended warranty options available.

Electrical

  • Accepts range of line voltages between 120V to 277V AC
  • Option for High Voltage Input
  • THD < 20% • PF > .9
  • Available with additional battery back up power supply for emergency lighting

Mechanical

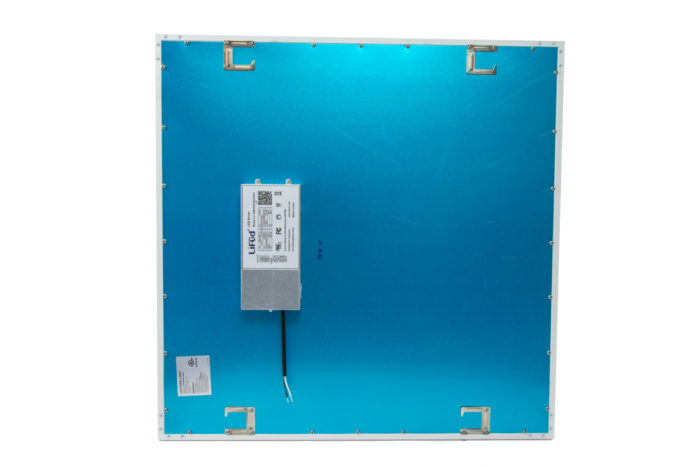

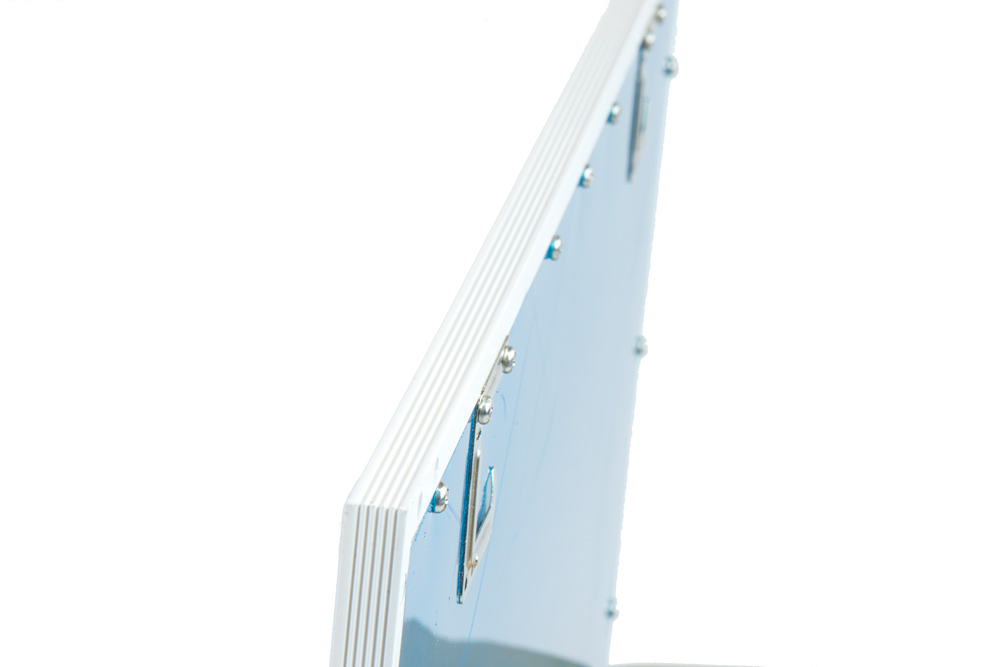

  • Housing made from Aluminum for superior stability and heat sinking
  • Precise fit into drop grid ceilings.
  • Quick connect terminals for line side connections.
  • Available with safety clamps, flush mount kits, and suspension kits to installation in almost any indoor ambient lighting application.

All size, materials, and performance combinations may not be UL and DLC certified. Please reference listing agency to verify, or ask your PLG representative. Any combination not currently listed can be listed upon request.

Additional information

Weight N/A
Dimensions N/A
Wattage

30W, 40W

CCT

4000K, 5000K

PLG Panel Series Spec Sheet V1.3

Download

PLG Panel Series 5 Year Warranty

Download

Photometric Data File (IES)

Download
